Picking the right BMX race bottom bracket can get confusing fast.
Not because bottom brackets are exciting. They aren’t.
But because race BMX uses different standards, and the wrong BB can stop your build before you even get to the track.
Some race frames use a Euro threaded bottom bracket.
Others use press-fit setups like BB86/92, BB30, or similar standards.
And that’s before you even check your crank spindle size.
Fun, right?
Not really.
But once you know what your frame needs, choosing the right BMX race bottom bracket gets much easier.
In this guide, I’ll cover my favorite Euro and press-fit BMX race bottom brackets, which type of rider/build each one is best for, and what to check before buying.
Because a bottom bracket won’t magically make you faster.
But a smooth, properly fitted BB can help your race bike feel cleaner, tighter, and more efficient every time you pedal.
This post covers:
- Quick Picks: Best BMX Race Bottom Brackets
- Best Euro BMX Race Bottom Brackets
- Best Press-Fit BMX Race Bottom Brackets
- Euro vs Press-Fit BMX Race Bottom Brackets
- Common BMX Race Bottom Bracket Mistakes
- Conclusion: Pick The BB That Fits Your BMX Race Frame
- FAQs About BMX Race Bottom Brackets
Quick Picks: Best BMX Race Bottom Brackets
| Bottom Bracket | Type | Spindle | Best For |
|---|---|---|---|
| Insight External BB | Euro / BSA threaded | 24mm | Simple Euro race builds |
| Box Two Alloy External Sealed Bearing BB | Euro / BSA threaded | 24mm | Box crank setups |
| Elevn External Euro BB | Euro / BSA threaded | 24mm | Race-specific Euro builds |
| Answer Pro Ceramic BB | Euro / BSA threaded | 24mm | Ceramic bearing upgrade |
| Elevn Press Fit BB86/92 BB | Press-fit BB86/92 | 24mm | Modern press-fit race frames |
| Cane Creek Hellbender 70 BB | BB30 68/73mm | 24mm | BB30-to-24mm setups |
| Wheels Manufacturing Outboard BB | BB30 outboard | 24mm | BB30 builds needing fewer creaks |
Best Euro BMX Race Bottom Brackets

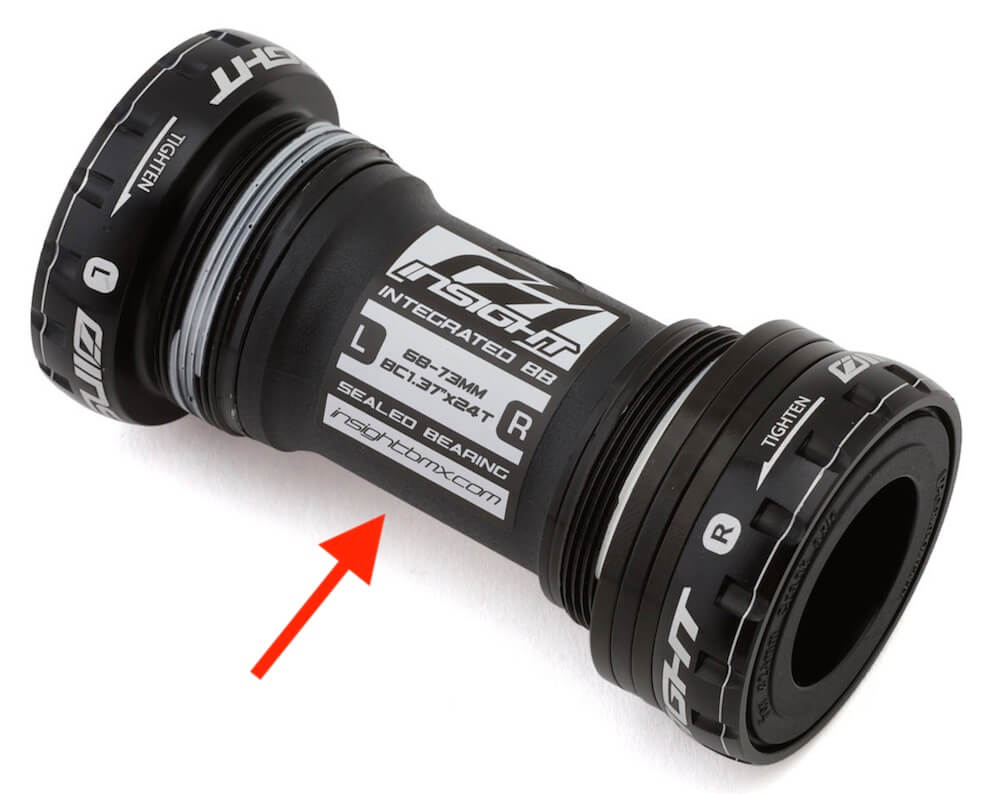

1. Insight External Bottom Bracket
The Insight External BB is a clean Euro/BSA pick for BMX race frames running 24mm spindle cranks.
It’s made for frames with a 68–73mm Euro bottom bracket shell, so don’t grab this unless your frame is threaded Euro/BSA.
Moreover, it has a 24mm axle diameter, 34.5mm outside diameter, and a 3.5 oz weight.
What I like about this BB is that it keeps things simple but super race-friendly.
You get CNC-forged 6061-T6 alloy cups, oversized sealed bearings, and a nylon sheath, which is exactly what I’d want for a smooth, low-drama race build.
Insight External BB Features
- Spindle size: 24mm
- Weight: 3.5 oz (99.2 g)
- Price: $49.99

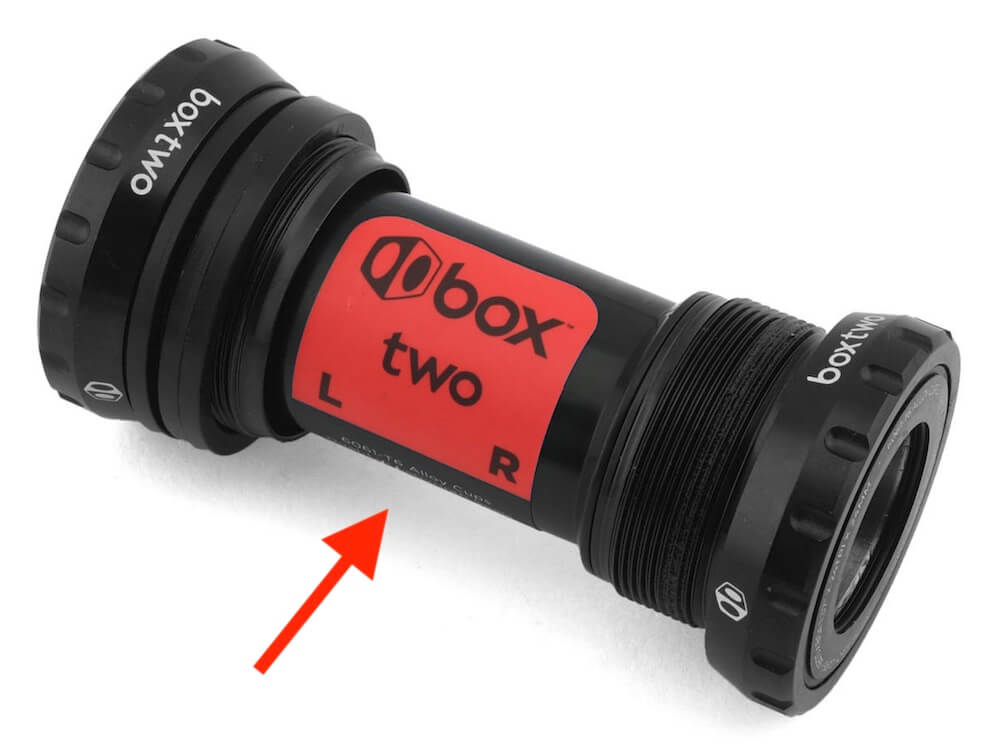

2. Box Two Alloy External Bottom Bracket
For riders already using Box cranks, this is the Euro BB that keeps everything in the same family.
The Box Two Alloy External bottom bracket is made for 24mm crank spindles and 68/73mm BSA threaded shells, so it’s a solid fit for many BMX race frames with a Euro setup.
It uses cold-forged, CNC-machined alloy cups, precision-sealed bearings, and dual-labyrinth bearing covers to help keep dirt away from the bearings.
I like seeing that on a race bike!
Smooth pedaling matters, but so does keeping the BB running clean after gate practice, dusty tracks, and regular riding.
And at around 3.7 oz, it also stays nice and light.
Note: You can also get the Box Two Oversized Euro bottom bracket (30mm).
Box Two Alloy External BB Features
- Spindle size: 24mm
- Weight: 3.7 oz (104.9 g)
- Price: $64.99

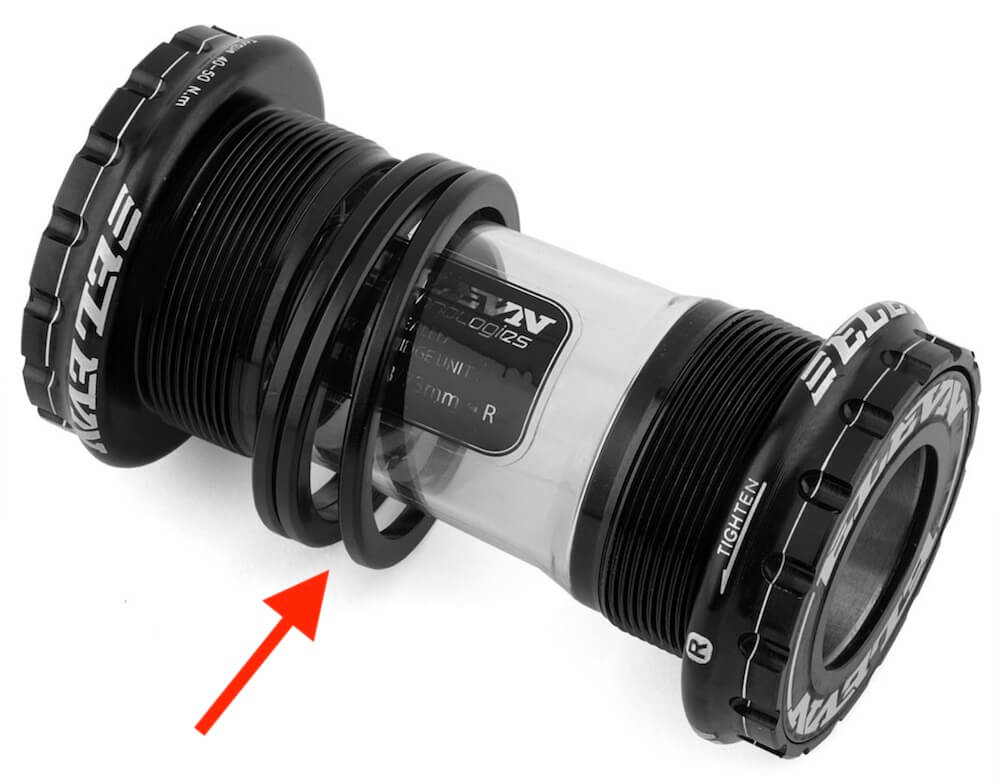

3. Elevn External Bottom Bracket
If you want a proven race-specific Euro BB, the Elevn External Euro BB is an easy one to add to the list.
This is a 24mm through-axle bottom bracket designed for Euro BSA/BSC 68/73mm threaded frames, so it’s well-suited to many BMX race builds.
It uses aluminum cups, ultra-smooth sealed cartridge bearings, and includes three spacers to help dial in the fit.
Elevn also lists it at 3.8 oz, which is solid.
I like this one because it’s simple, light, and compatible with cranks from Shimano, Bombshell Spinnergy, Rhythm, and others.
You get a clean external Euro BB from a brand that lives deep in the BMX race scene.
Elevn External BB Features
- Spindle size: 24mm
- Weight: 3.8 oz (107.7 g)
- Price: $69.99

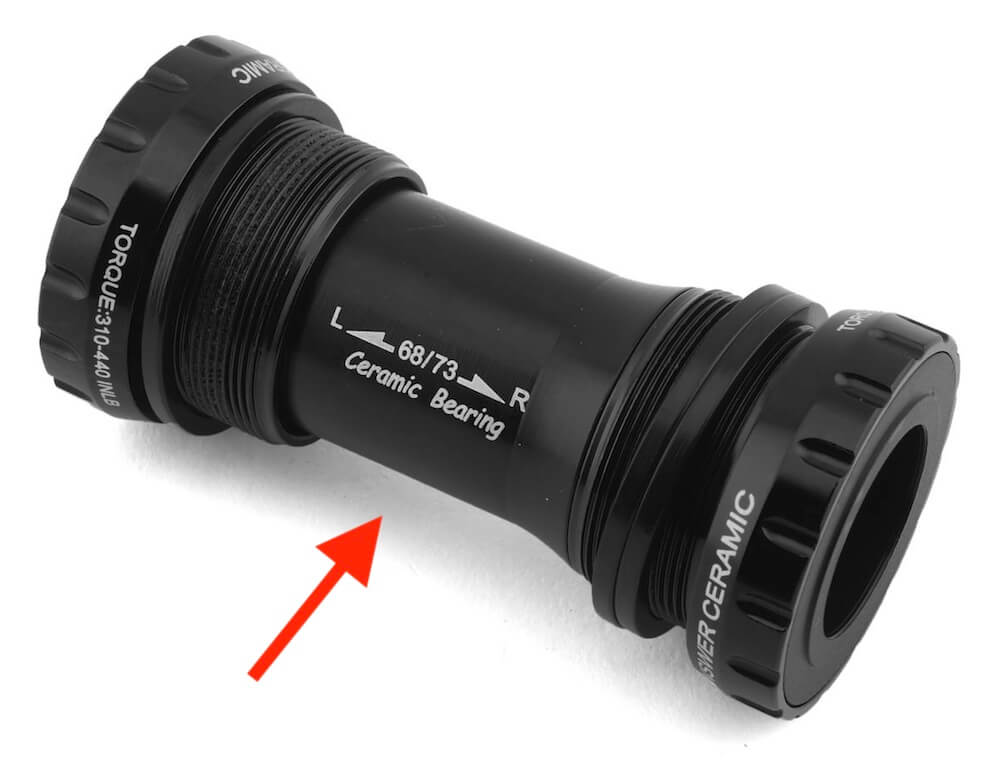

4. Answer Pro Ceramic Bottom Bracket
Ceramic bearings make the Answer Pro Ceramic BB the premium pick in the Euro section.
This one is made for riders who care about smooth pedal rotation and want an EVEN MORE race-focused upgrade than a basic sealed BB.
But would I say every BMX racer needs ceramic bearings?
Nope.
However, if you’re building a cleaner, higher-end race bike and want that extra smooth feel, this Answer BB is a nice upgrade to consider.
Just make sure your frame uses a Euro shell before clicking buy.
Answer Pro Ceramic BB Features
- Spindle size: 24mm
- Weight: 3.2 oz (90.7 g)
- Price: $115.99
Best Press-Fit BMX Race Bottom Brackets

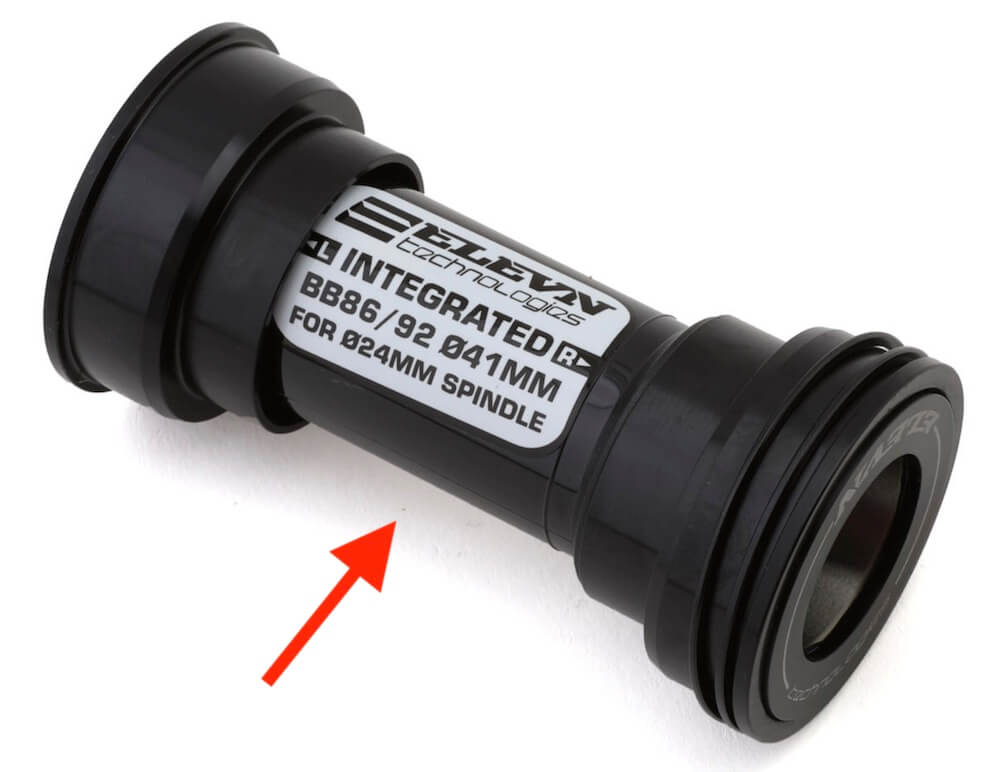

1. Elevn Press Fit BB86/92 Bottom Bracket
Now we’re moving into press-fit race frame territory, and the Elevn Press Fit BB86/92 BB is a clean place to start.
This bottom bracket is made for BMX race frames with a BB86/92 press-fit shell and 24mm spindle cranks.
Elevn uses aluminum cups, sealed cartridge bearings, a nylon sheath, and includes two spacers to help with setup.
It’s also light at 3.5 oz.
I’d look at this one if your frame doesn’t use a threaded Euro shell and you need a proper BB86/92 press-fit option.
Just don’t guess here.
With press-fit, the shell standard and spindle size need to match, or you’re in for an annoying build day.
Elevn Press Fit BB86/92 BB Features
- Spindle size: 24mm
- Weight: 3.5 oz (99.2 g)
- Price: 62.99

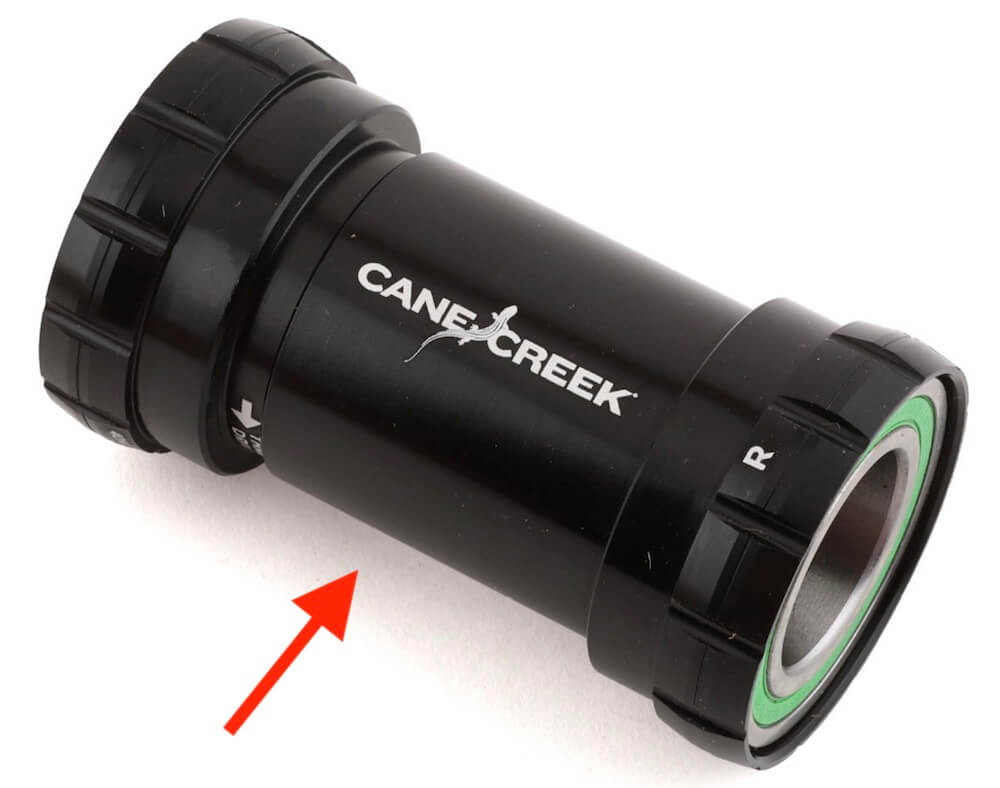

2. Cane Creek Hellbender 70 Bottom Bracket
The Cane Creek Hellbender 70 is a strong pick if your BMX race frame uses a BB30 shell, but your cranks have a 24mm spindle.
That makes it more of a fit-specific bottom bracket, not something every racer will need.
But if it matches your setup, it’s a quality option from a brand known for smooth, durable bearings.
Cane Creek uses 440C stainless steel bearings, machined aluminum cups, tight dual-lip seals, and waterproof marine-grade grease.
Yup, this thing keeps running smoothly and quietly with less maintenance.
That’s a big plus for race bikes that see dusty tracks, gate practice, and regular abuse.
Check out the other few Cane Creek BB variations:
- Cane Creek Hellbender 70 Bottom Bracket (T47) (68/73mm) (24mm)
- Cane Creek Hellbender 70 Bottom Bracket (PF30) (24mm)
- Cane Creek Hellbender 70 Bottom Bracket (PF30) (30mm)
Cane Creek Hellbender 70 BB Features
- Spindle size: 24mm
- Weight: 3.5 oz (99.2 g)
- Price: $139.99

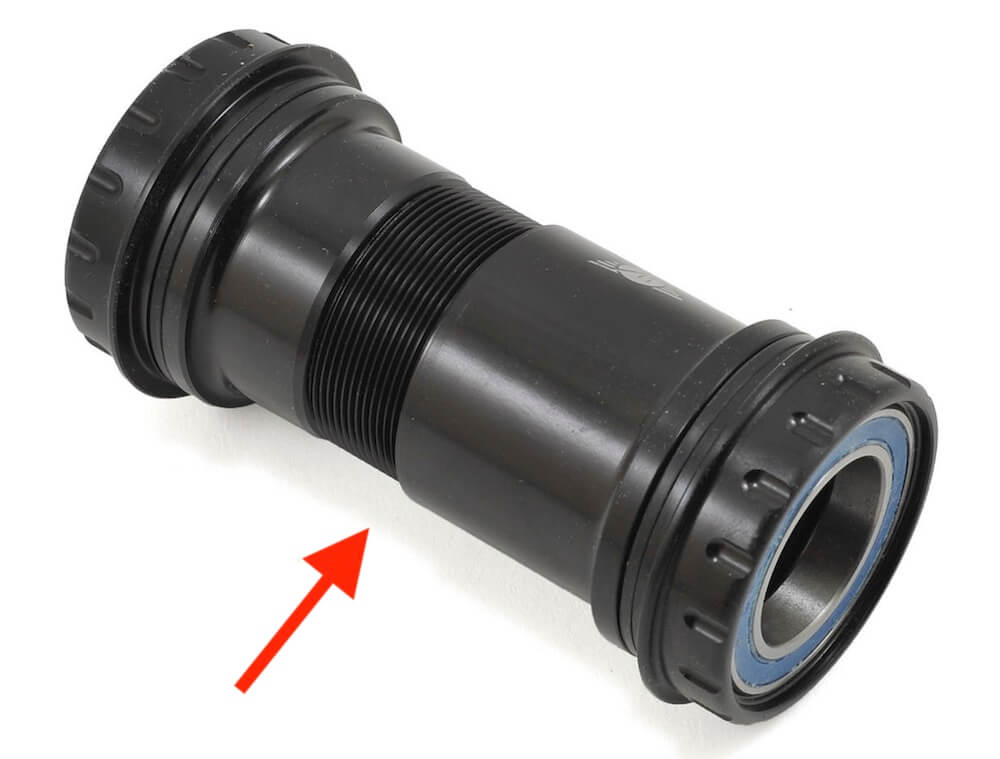

3. Wheels Manufacturing Outboard Bottom Bracket
Here’s another BB30 option, but this one takes a slightly different route.
The Wheels Manufacturing Outboard BB is designed to let you run 24mm cranks in a BB30 frame without extra adapters.
Wheels Mfg says the BB30-OUT setup fits 68/73mm shells with a 42mm shell ID and accepts 24mm cranks.
What’s nice is the design.
Instead of loose adapters, the two machined aluminum cups thread together inside the frame.
How cool is that?
That helps keep the bottom bracket more stable, can reduce creaking, and makes bearing replacement easier.
If your BMX race frame uses BB30 and your cranks are 24mm, this is a clean, high-quality fix.
Wheels Manufacturing Outboard BB Features
- Spindle size: 24mm
- Weight: 5.4 oz (153.1 g)
- Price: $118.99

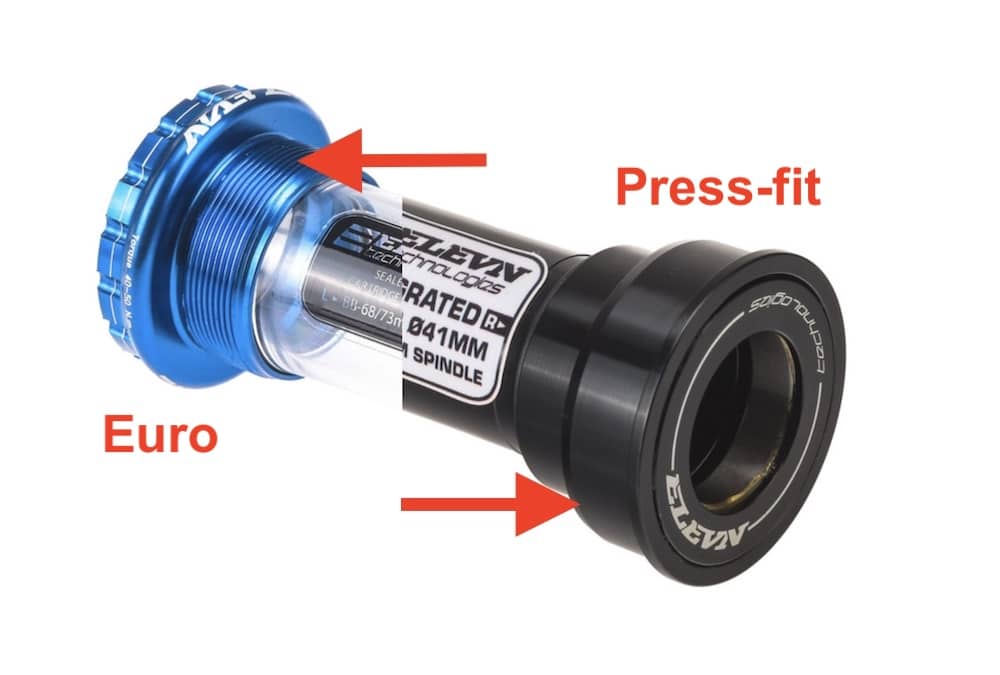

Euro vs Press-Fit BMX Race Bottom Brackets
The two main BMX race bottom bracket types you’ll run into are Euro and press-fit.
And they are not interchangeable.
So, before you buy anything, check your frame specs.
ALWAYS.
Euro Bottom Bracket
A Euro bottom bracket threads into the frame.
This is a very common setup on BMX race frames, especially alloy frames and smaller race bikes.
Euro BBs are nice because they’re simple.
You thread the cups into the frame, install your BMX race cranks, dial in the spacing, and you’re good.
They’re also easier to remove and replace compared to most press-fit setups.
Press-Fit Bottom Bracket
A press-fit bottom bracket doesn’t thread into the frame.
Instead, the cups or bearings – yes – press directly into the frame shell.
You’ll see press-fit standards like BB86/92 and BB30 on some modern BMX race frames.
Press-fit can be great, especially on higher-end race builds, but it needs more attention.
The fit has to be correct. The install has to be straight.
And you usually need the right press tool to do the job properly.
Note: Neither one is automatically better.
A good Euro BB that fits correctly is better than a fancy press-fit BB that doesn’t.
And a good press-fit setup can feel smooth, solid, and clean when installed properly.
The real answer is boring but important:
Pick the bottom bracket that fits your BMX race frame and crank spindle.
That’s it.
But in short, for most riders, Euro is easier.
For modern race frames, press-fit is often what the frame requires.
Common BMX Race Bottom Bracket Mistakes
- Buying before checking your frame shell: This is the big one. Don’t buy a BB just because it looks good or matches your cranks. First, check whether your frame uses Euro/BSA, BB86/92, BB30, PF30, etc.
- Mixing up Euro and press-fit: Euro bottom brackets thread into the frame. Press-fit bottom brackets press into the frame. They are completely different systems.
- Guessing with press-fit standards: BB86/92 and BB30 are not the same thing. Don’t “close enough” this part. Press-fit needs to match the frame shell exactly.
- Ignoring crank compatibility: Some cranks need specific spacing, adapters, or bearing setups. Always check what your crank brand recommends.
- Forgetting about spacers: Spacers help dial in chainline and crank spacing. Leave them out or install them wrong, and the cranks may bind, move side to side, or sit poorly.

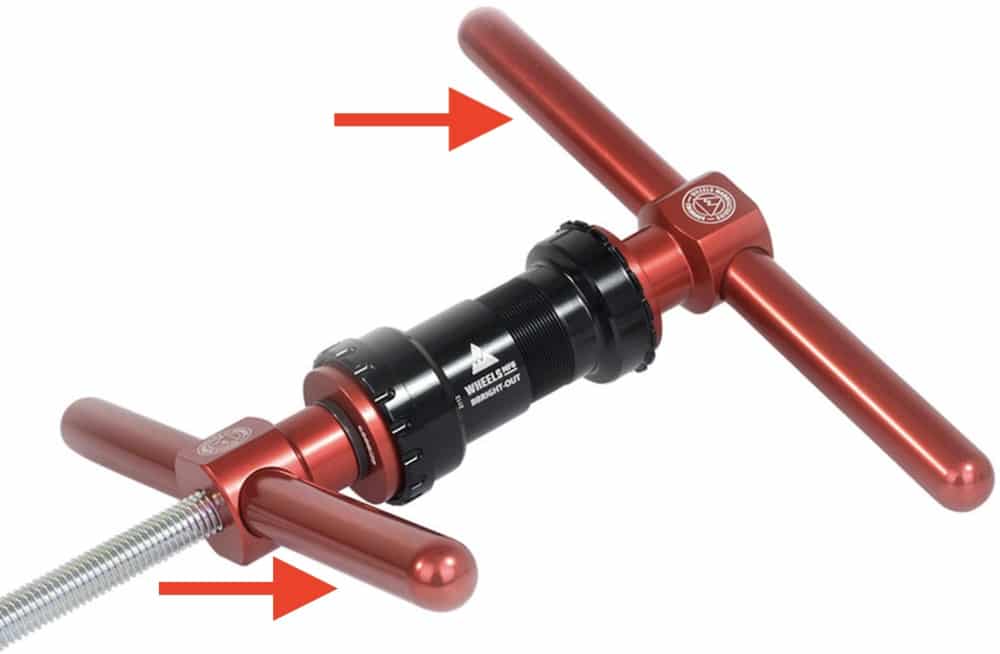

- Installing press-fit BBs without the right tool: Hammering a press-fit bottom bracket in is asking for trouble. Use a proper press tool or have a shop install it.
- Overtightening everything: More torque isn’t always better. Overtightening can damage bearings, crush spacers, or make the cranks spin poorly.
- Ignoring creaks: A creaky BB usually means something is loose, dirty, dry, worn, or installed wrong. Don’t just keep riding and hope it disappears.
- Buying ceramic because it sounds faster: Ceramic bearings can be nice, but they’re not magic. For most riders, proper fit, well-sealed bearings, and proper installation matter more.
Conclusion: Pick The BB That Fits Your BMX Race Frame
The right BMX race bottom bracket should be smooth, solid, and reliable.
But the “best” one is still the one that actually fits your frame and cranks.
That’s the part you don’t want to guess.
Start with your frame’s bottom bracket shell.
Is it Euro/BSA threaded? BB86/92? BB30?
Then check your crank spindle size.
Most of the picks in this list are for 24mm spindles, but don’t assume. Check first, buy second.
If your frame uses a Euro shell, stick with a Euro bottom bracket.
If your frame uses press-fit, make sure you match the exact press-fit standard.
Because when everything fits correctly, your cranks spin smoother, your chainline is easier to dial in, and your bike feels tighter out of the gate.
And that’s what you want from a BMX race BB.
Nothing flashy.
Just clean power transfer, smooth pedaling, and one less thing to worry about on race day.
FAQs About BMX Race Bottom Brackets
What is a BMX race bottom bracket?
A BMX race bottom bracket sits inside the frame and lets your cranks spin.
It connects the frame, bearings, spindle, and cranks together so you can pedal smoothly and transfer power into the bike.
What bottom bracket do BMX race bikes use?
Most BMX race bikes use either a Euro threaded bottom bracket or a press-fit bottom bracket.
Is a Euro bottom bracket good for BMX racing?
Yes, Euro bottom brackets are very common in BMX racing.
They’re simple, easy to work with, and a solid choice if your race frame uses a threaded Euro/BSA shell.
What is a press-fit BMX race bottom bracket?
A press-fit bottom bracket presses into the frame shell instead of threading in.
It’s common on some modern BMX race frames, especially higher-end alloy and carbon builds.
Is BB86 the same as PF41?
They’re closely related, and you’ll often see them talked about together.
But don’t guess. Always check your frame’s exact bottom bracket standard before buying.
Can I use any bottom bracket on my BMX race bike?
No. You need to match the bottom bracket to your frame shell and crank spindle size.
What spindle size do BMX race cranks use?
It depends on the cranks.
Common BMX race crank spindle sizes include 19mm, 22mm, 24mm, and 30mm. Many modern race setups use 24mm, but always check your crank specs.
Are ceramic bottom brackets worth it for BMX racing?
For most riders, not really.
Ceramic bearings can feel very smooth, but good sealed bearings, correct fit, and proper installation matter more for most BMX racers.
Why does my BMX race bottom bracket creak?
A creaky BB can come from loose parts, worn bearings, dirt, dry threads, wrong spacers, or poor installation.
With press-fit BBs, creaking can also happen if the cups aren’t seated correctly.
How do I know which BMX race bottom bracket to buy?
Check your frame’s bottom bracket shell first. Then check your crank spindle size.
Once those two match, you can choose the BB that fits your budget, bearing preference, and race build.
Note: If you’re refreshing your race bike’s drivetrain, don’t stop at the bottom bracket. A fresh BMX race chain and the right BMX race chainring can make your bike feel smoother, tighter, and more efficient out of the gate.
